Atlas L100
Lithium-Powered Drone Series
30 min
Long Endurance
-10℃
Stable Flight Operation
60 kg
Maximum Payloads
50 km
Transmission Range

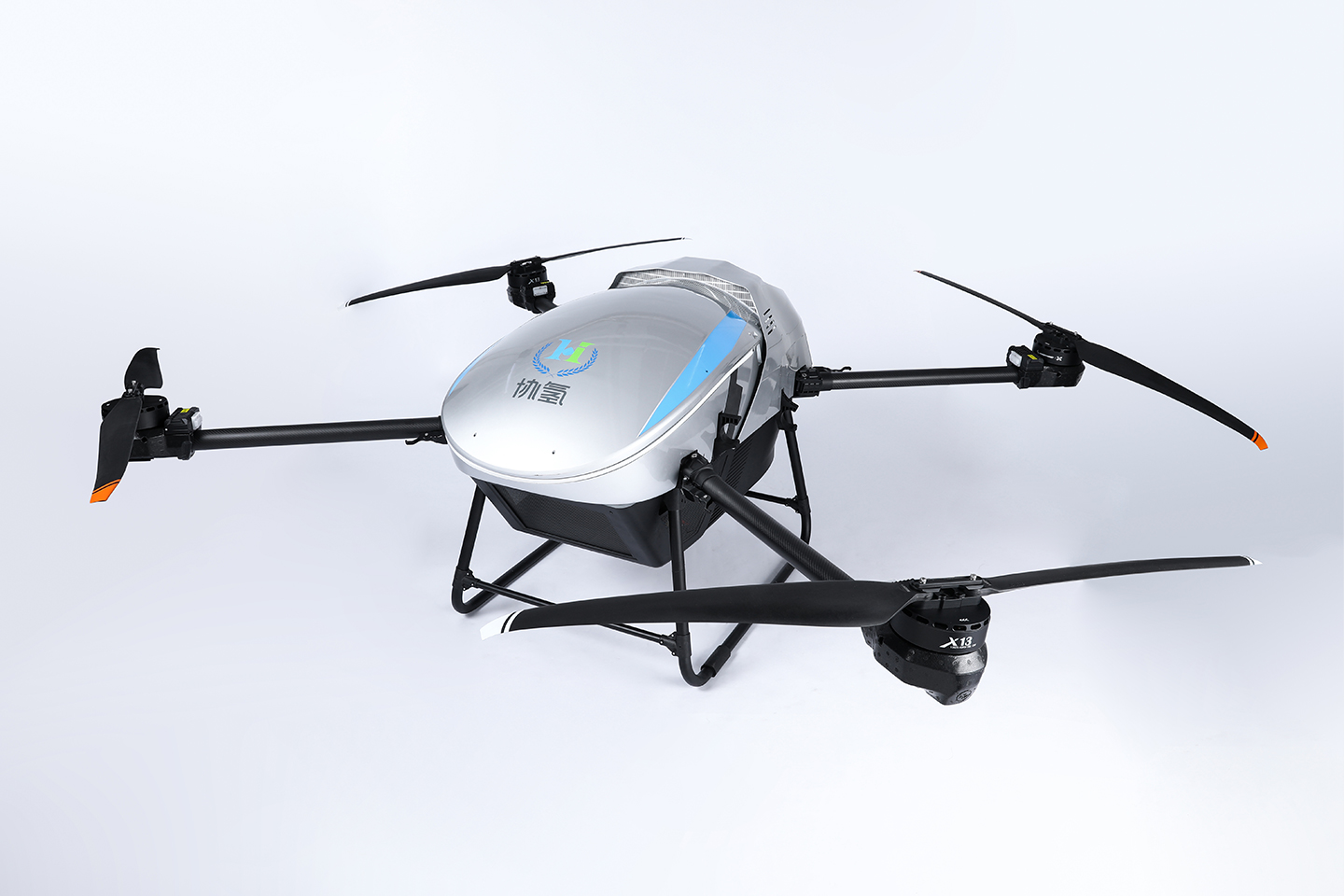

Atlas L100
Atlas L100 drone uses advanced technology and materials, offering strong load capacity, stable flight performance, and high-precision positioning. With customizable payload system catering to diverse application needs, Atlas L100 can be widely used in curtain wall/solar panel cleaning, logistics hoisting, and forest firefighting.
Category
Specifications
Power Type
Lithium-powered
Model
Quadcopter
Diagonal Wheelbase
2310 mm
Max Takeoff Weight
100 kg
Max Payload
40 kg
Empty Endurance
30 min
Operating Temperature
-10℃ ~ +50℃
Max Flight Altitude
3000 m
Flight Speed
18 m/s
Max Climb Speed
3 m/s
Wind Resistance
Level 6
Hover Accuracy
Horizontal: ±1.5 m
Vertical: ±0.5 m
Vertical: ±0.5 m
Mission Payloads
Cleaning, Hoisting, Logistics, Firefighting Modules
Unfolded Dimensions
(excluding Propellers)
(excluding Propellers)
1740 × 1870 × 820 mm (L × W × H)
Folded Dimensions
(including Landing Gear)
(including Landing Gear)
1150 × 870 × 950 mm (L × W × H)
